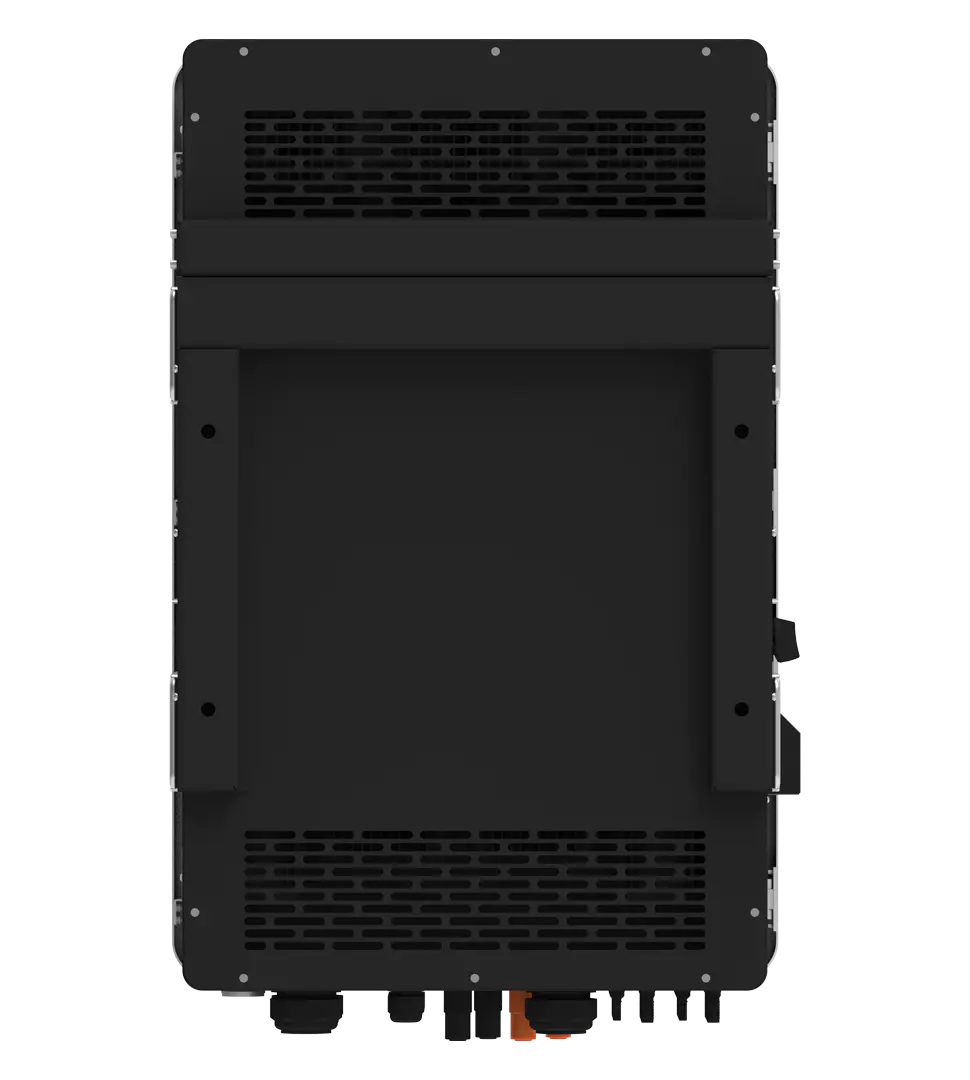

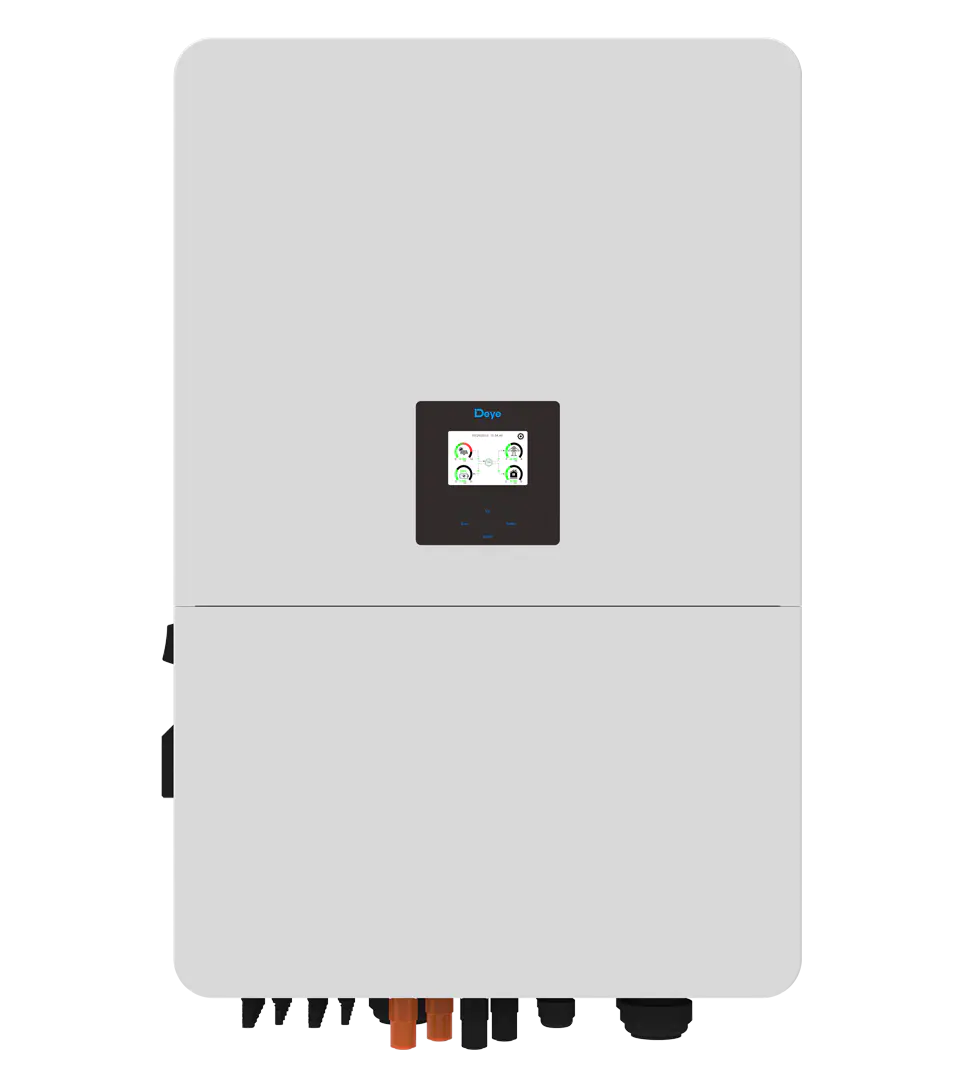

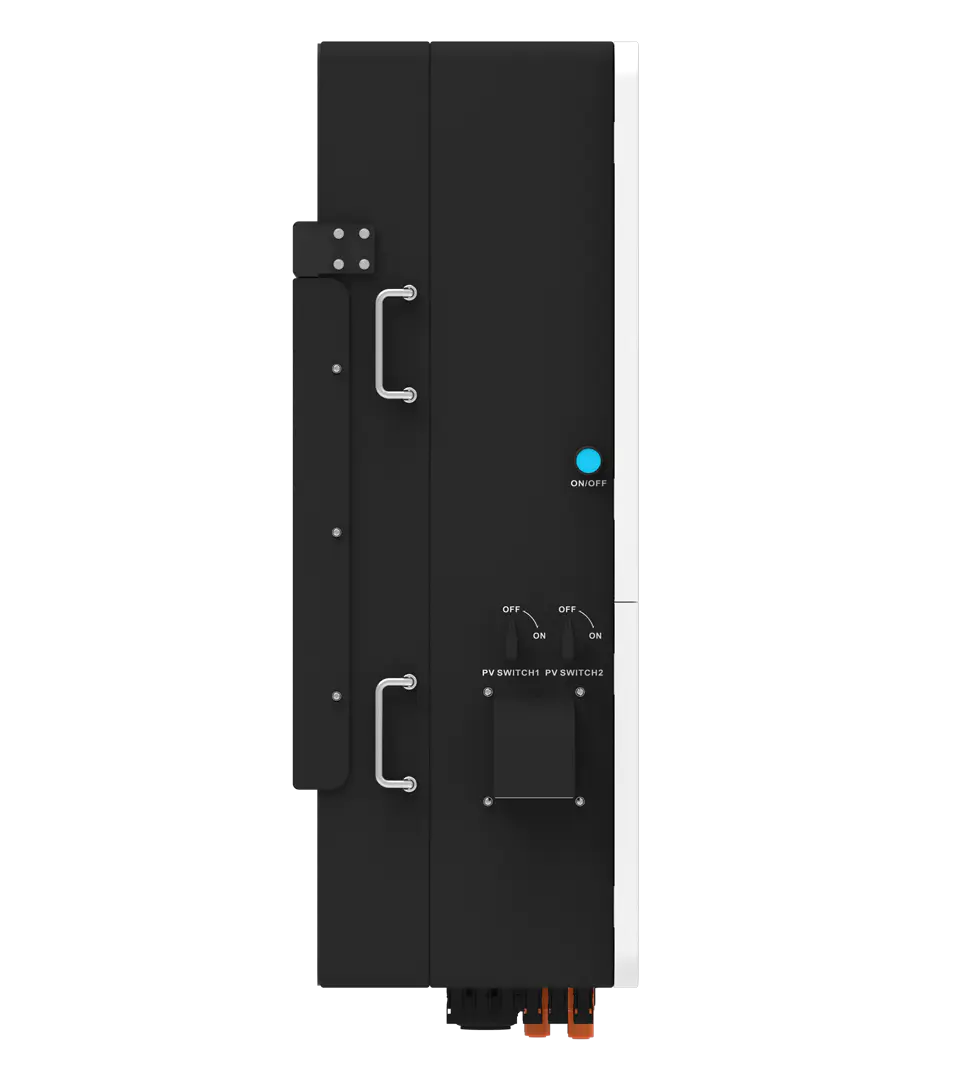

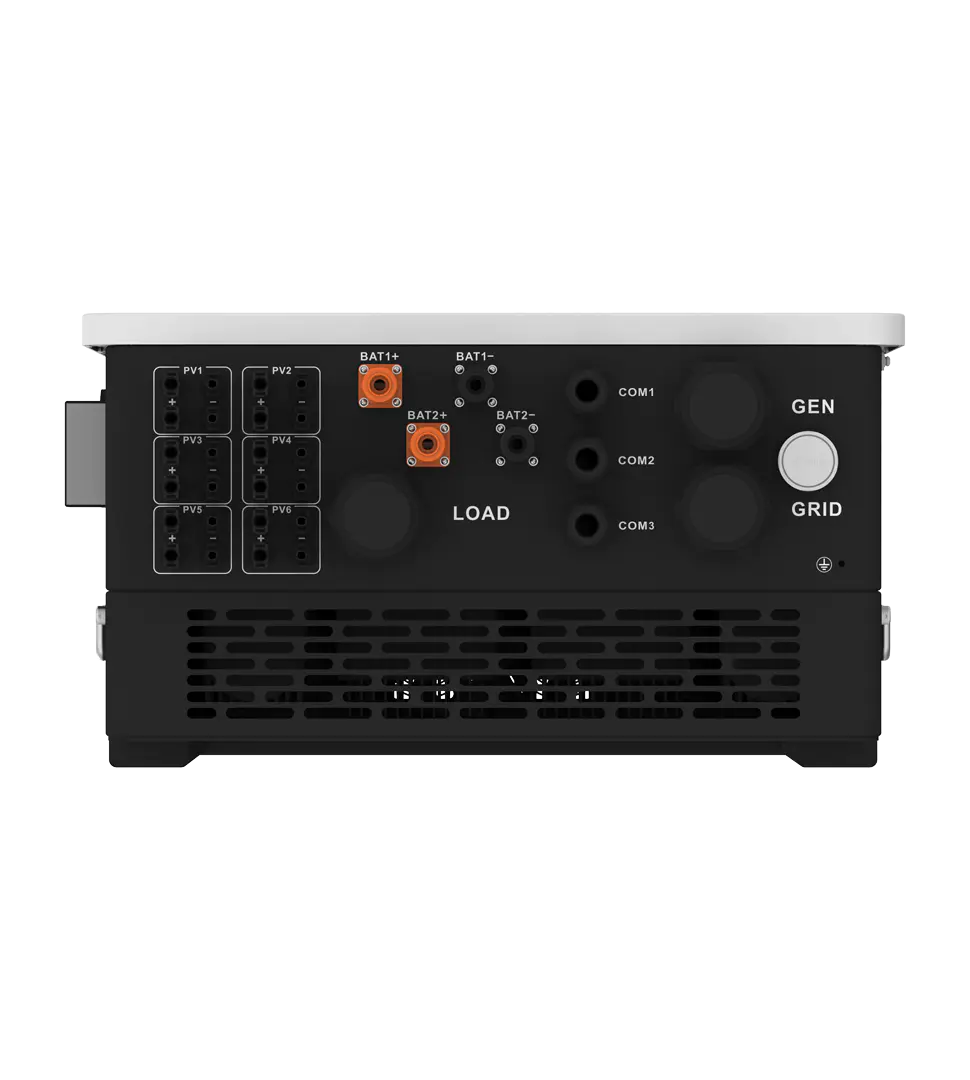

Three Phase Hybrid Inverter | 60-80kW | 6 MPPT | HV Battery Supported
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Features:
- 100% unbalanced output
- AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 160A
- High voltage battery, higher efficiency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Electrical Parameters
| Model | SUN-60K-SG02HP3 -EU-EM6 | SUN-70K-SG02HP3 -EU-EM6 | SUN-75K-SG02HP3 -EU-EM6 | SUN-80K-SG02HP3 -EU-EM6 |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lithium-ion | |||
| Battery Voltage Range (V) | 160-1000 | |||
| Max. Charging Current (A) | 80+80 | |||
| Max. Discharging Current (A) | 80+80 | |||
| Charging Strategy forLi-ion Battery | Self-adaption to BMS | |||
| Number of Battery Input | 2 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 120000 | 140000 | 150000 | 160000 |
| Max. PV Input Power (W) | 96000 | 112000 | 120000 | 128000 |
| Max. PV Input Voltage (V) | 1000 | |||
| Start-up Voltage (V) | 180 | |||
| MPPT Voltage Range (V) | 150-850 | |||
| Rated PV Input Voltage (V) | 650 | |||
| Max. Operating PV Input Current (A) | 36+36+36+36+36+36 | |||
| Max. Input Short-Circuit Current (A) | 54+54+54+54+54+54 | |||
| No. of MPP Trackers/ | 6/2+2+2+2+2+2 | |||
| No. of Strings MPP Tracker | ||||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power (W) | 60000 | 70000 | 75000 | 80000 |
| Max. AC Input/Output Apparent Power (VA) | 66000 | 77000 | 82500 | 88000 |
| Rated AC Input/Output Current (A) | 91/87 | 106.1/101.5 | 113.7/108.7 | 121.3/115.9 |
| Max. AC Input/Output Current (A) | 100/95.7 | 116.7/111.6 | 125/119.6 | 133.4/127.6 |
| Max. Continuous AC Passthrough (grid to load) (A) | 200 | |||
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | |||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||
| Grid Connection Form | 3L+N+PE | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5% In | |||
| Efficiency | ||||
| Max. Efficiency | 98.7% | |||
| Euro Efficiency | 98.1% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, | |||
| AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, | ||||
| Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, | ||||
| Insulation Impedance Detection, Residual Current Detection | ||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0-100% | |||
| Permissible Altitude | 3000m | |||
| Noise (dB) | ≤65 | |||
| Ingress Protection(IP) Rating | IP 65 | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||
| Cabinet Size (WxHxD mm) | 606×927×314 (Excluding Connectors and Brackets) | |||
| Weight (kg) | 105.0 | |||
| Type of Cooling | Intelligent Air Cooling | |||
| Warranty | 5 Years/10 Years | |||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | |||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
