Design Number
- UV resistance and VO flame retardant material
- Contact Silver Plating, silver layer thickness up to the industry’s highest standards
- Arcing Time in 3 ms
- No Polarity
- Lockable at OFF position
- Plug-in module design
Installation Precautions
- MAXIMUM CABLE SECTION: 4-16mm2
- MC:IP66NW with panel MC4 connector top in and bottom out
Electrical Parameters

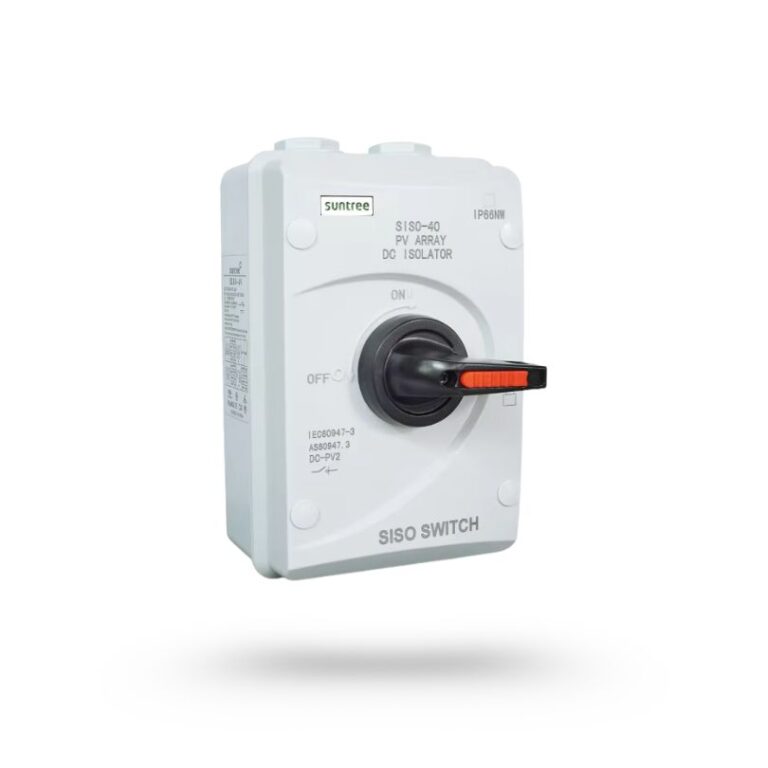

| Product Model | S1SO-40 (1000V) |
|---|---|
| Pole | 2/4 |
| Rated Operational Voltage/Ue(V) | 600V-1500V |
| Rated Operational CurrenVin(A) | 16A-55A |
| Rated Insulation Voltage/Ui(V) | 1500 |
| Rated Impulse withstand Voltage/Uimp(V) | 8000 |
| Mechanical Life | 10000 times |
| Electrical Life | 3000 times |
| Fire-retardant Enclosure Level | VO |
| Device Width x Height (mm) | 97.6*179.6 |
| Method of Mounting | wall-mounted |
| Mounting | Screw fixation |
| Fastening Torque of Terminals(N.m) | 0.5-1.8 |
| Location | Indoor or outdoor |
| Ambient Temperature | -40°C to +85 °C |
| Altitude | below 2000m |
| Pollution Level | [I] |
| Installation Class | IP66 |
