General Parameters

  • Suitable for large solar photovoltaic power plants
  • This circuit breaker has overload long delay and short-circuit instantaneous protection functions, which are used to distribute electrical energy and protect the circuit and power equipment from overload. short circuit and other fault hazards
  • High current. can be used to protect batteries

Installation Precautions

  • In a medium without explosion risk and free of gases and dust(including conductive dust) sufficient to corrode metal and destroy insulation
  • In the condition with no snow erosion
  • It can be installed horizontally and vertically
  • The magnetic field of the installation position shall not exceed 5 times the geomagnetic field in any direction;
  • It should not be installed in flammable and explosive places
  • There should be no significant impact and vibration at the installation place

Electrical Parameters

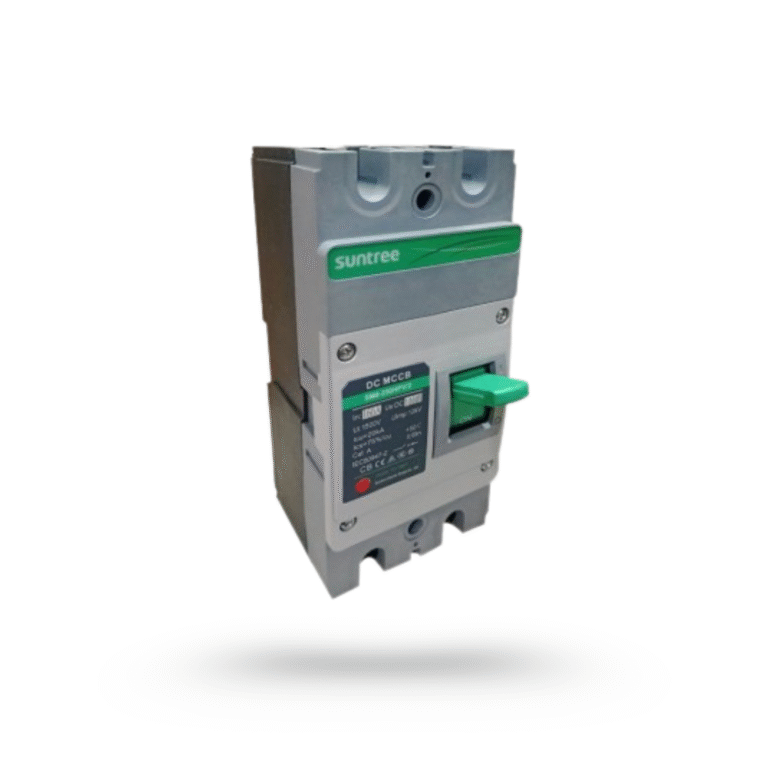

Product ModelSM8-250HPV / 2 / 2P 1000V
Product namePVDCMCCB
Rated service voltage UeDC1000V 1200V
Rated insulation voltage Ui1500V
Rated impulse withstand voltage Uimp12kV
Numbers of poles2
Trip typeThermal magnetic (thermal magnetic non adjustable) TMD fixed
Manufacturing standardsGB14048.2, IEC/EN 60947-2
Use categoryA(PV-1)
Current shell frame In250A
Rated service current le100/125/160/200/225/250A/320A/400A
Breaking typeH
Ultimate short circuit breaking capacity lcuUe1000v 15kA
Rated service short-circuit breaking capacity lcs75%ICU
Current setting Ir1In
Instantaneous short circuit protection UMechanical life6ln (Min1000A)
Mechanical life1000 times
Electrical life2000 times
Overall dimensions LxWxH900x200x86mm
Installation modeFixed
Ingress protectionWiring terminal: IP20/all sides: IP40
Relative humidityNot more than 95% at +50°C
With wiring polarity requirements or notNO
Class of pollutionLevel 3
Service temperature-40°C -+75°C
Operation indicationsON/OFF indication
Whether the trip is adjustableNO
Electrical accessoriesOption: shun/auxiliary/alarm (note: only one set of auxiliary, alarm and shunt can be installed on the left and right side) 2P only on the left side
lsolating functionYes
MODELSM8-250HPV / 3P 1500VSM8-630HPV / 4P 1500V
Product namePVDCMCCBPVDCMCCB
Rated operational voltageDC1500VDC1500V
Nominal insulation voltage1500V1500V
Rated impulse voltage12kV12kV
Pole34
Type of releaseThermal magnetic type (thermal magnetic not adjustable)
Executive standardG814048.2, IECIEN 60947-2
Use categoryA(PV-1)
Case grade current250A630A
Rated operational current100/125/160/200/225/250A400/500/630A
Breaking capacityH
Rated ultimate short-circuit breaking capacityUe1500v 15kAUe 1500v 30kA
Ue1500v 30kA
Operation breaking capacityUe1500v 15kAUe 1500v 30kA
Ue1500v 30kA
Long delay protection1In
Instantaneous protection6In (Min1000A)
Mechanical life10000 times
Electrical life2000 times
Dimensions135x200x86mmType H.310x240x155mm
Type G:350x240x155mm
Installation methodFixed
Protection levelWiring port: IP20/all sides IP40
Relative humidity+50°C not more than 95%
Whether there are wiring polanty requirementsNo
Polution levelLevel 3
Operating temperature-40°C -+75°C
Operation instructionsWith ON/OFF indication
Whether the release is adjustableNo
Electrical accessoriesOptional: shun/auxiliary/alarm
(note: only one set can be installed on the left and night sides of auxiliary, alarm and shunt) 2P only on the left
Isolation functionYes
