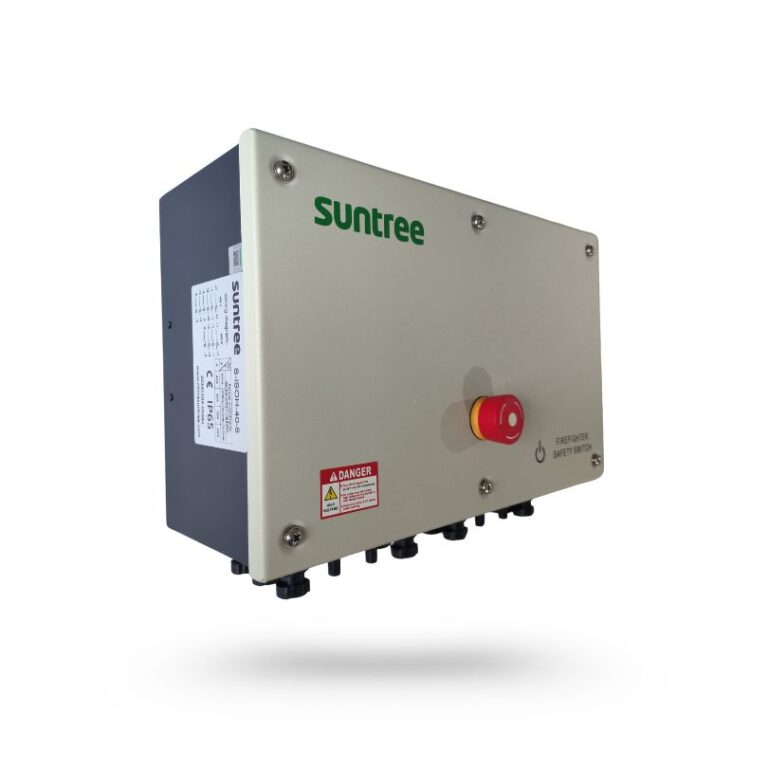

Suntree Rapid Shutdown Device
Product Advantages
- 1-10 STRINGS AVAILABLE
- UP TO 40A
- UP TO 1500V
- CE CERTIFICATION
- IP65 PROTECTION & ANTI UV
- APP REMOTE CONTROL
- SHUTDOWN FEEDBACK SIGNAL
- AUTO SHUTDOWN EXCEEDING 70°C
- 10000 MECHANICAL LIFE CYCLES
- LSOLATOR WITH CE,CB,TUV,SAA
Dimensions (mm)
- S-ISOH-40-3: 300*280*115
- S-ISOH-40-4: 350*280*115
- S-ISOH-40-5: 348*270*137
- S-ISOH-40-6: 348*270* 137
- S-ISOH-40-7: 348*330*173
- S-ISOH-40-8: 348*330*173
- S-ISOH-40-9: 348*330* 195
- S-ISOH-40-10: 348*330*195
Electrical Parameters
| Product Model | S-ISOH-40-1 | S-ISOH-40-2 | S-ISOH-40-3 | S-ISOH-40-4 | S-ISOH-40-5 | S-ISOH-40-6 | S-ISOH-40-7 | S-S-ISOH-40-8 | S-ISOH-40-9 | S-ISOH-40-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Number of Strings | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Max DC Voltage | 1500VDC | |||||||||
| Max DC current | 40A | |||||||||
| Parameteres | 1500V26A, 1250V32A, 1000V40A,800V40A,600V40A | |||||||||
| DC connector | MC4 | |||||||||
| Power supply type | AC single phase | |||||||||
| Nominal voltage | 230VAC | |||||||||
| Operating voltage | 100-270VAC | |||||||||
| Nominal frequency | 50 Hz/60 Hz | |||||||||
| Operating Frequency | 47-63 HZ | |||||||||
| Nominal current | 30mA | |||||||||
| Max current | 300mA | |||||||||
| AC connector | Plug-in | |||||||||
| Protection degree | IP65 | |||||||||
| Protection level | Class II | |||||||||
| Certification | CE | |||||||||
| Switch according to | EN 60947-3 | |||||||||
| Number of operations | 10000 | |||||||||
| N. of operations under load | 1500 | |||||||||
| Operating temperature | -20°C-70°C | |||||||||
| Temperature sensor trigger | 70°c | |||||||||
| Warranty | 5 years | |||||||||
| Weight | 2950 g | 3130 g | 3440 g | 3950 g | 4700 g | 5200 g | 5800 g | 6300 g | 6500 g | 7000 g |
